Multi Function Display (MFD)

Overview

Each Cockpit has an MFD in front of the pilot. The MFD displays information such as:

Basic flight instruments
Navigation data
Weapons data

alt text

T-38C Multi-Function Display button layout and naming scheme

Note

The above image shows the naming scheme for the MFD buttons (MOSBs). Further sections of the manual will reference the buttons as such.

Pressing MB1 will return you to the main menu (MENU1) at any time. Pressing any MOSB next to the displayed text will perform the labelled action, either switching pages, selecting data, or scrolling a list.

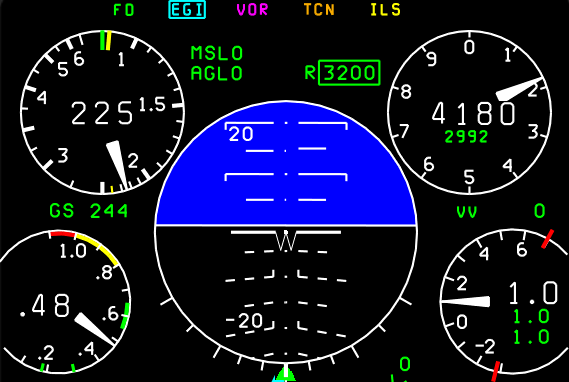

Primary Gauges

The T-38C displays airspeed, altitude and attitude on all MFD displays. In addition, on the PFR, HSD and TSD pages (TODO add links) Angle of Attack and Vertical Acceleration (G Meter) are shown

alt text

The 5 primary digital gauges
